This bucket features either straight edge or with teeth.
Straight Edge Great for: With Teeth :
Leveling ground Breaking up hard ground
Smoothing aggregates and soil Replaceable Tooth caps ( 23, 230)
Moving bulk material
Landscaping applications
Ditch maintenance
Slope shaping
Whether you're grading a pad or cleaning up a site, this bucket provides control, consistency, and a clean finished surface.
Sizes 14”, 24”, 36”, 48”
please reach out for custom sizes.
706-239-0462
Projects@77steel.net
Weight: Approximately 150 –350 lbs (varies depending on size and top plate configuration)
Interchangeable adaptor plate available
Built for aggressive digging and material separation, this ribbed bucket is designed to handle demanding excavation work while maintaining structural strength.
Heavy-Duty Construction
U.S. Built with U.S. Steel
½” solid, one-piece tines
8-piece frame construction
6” x ¾” thick cutting blade
3.5” tine spacing across 48” width
Interchangeable adaptor plate
Weight: 450–500 lbs (with plate)
The ribbed design allows material to separate while maintaining strength through the full frame. Built tough for contractors who expect their attachments to hold up under pressure.

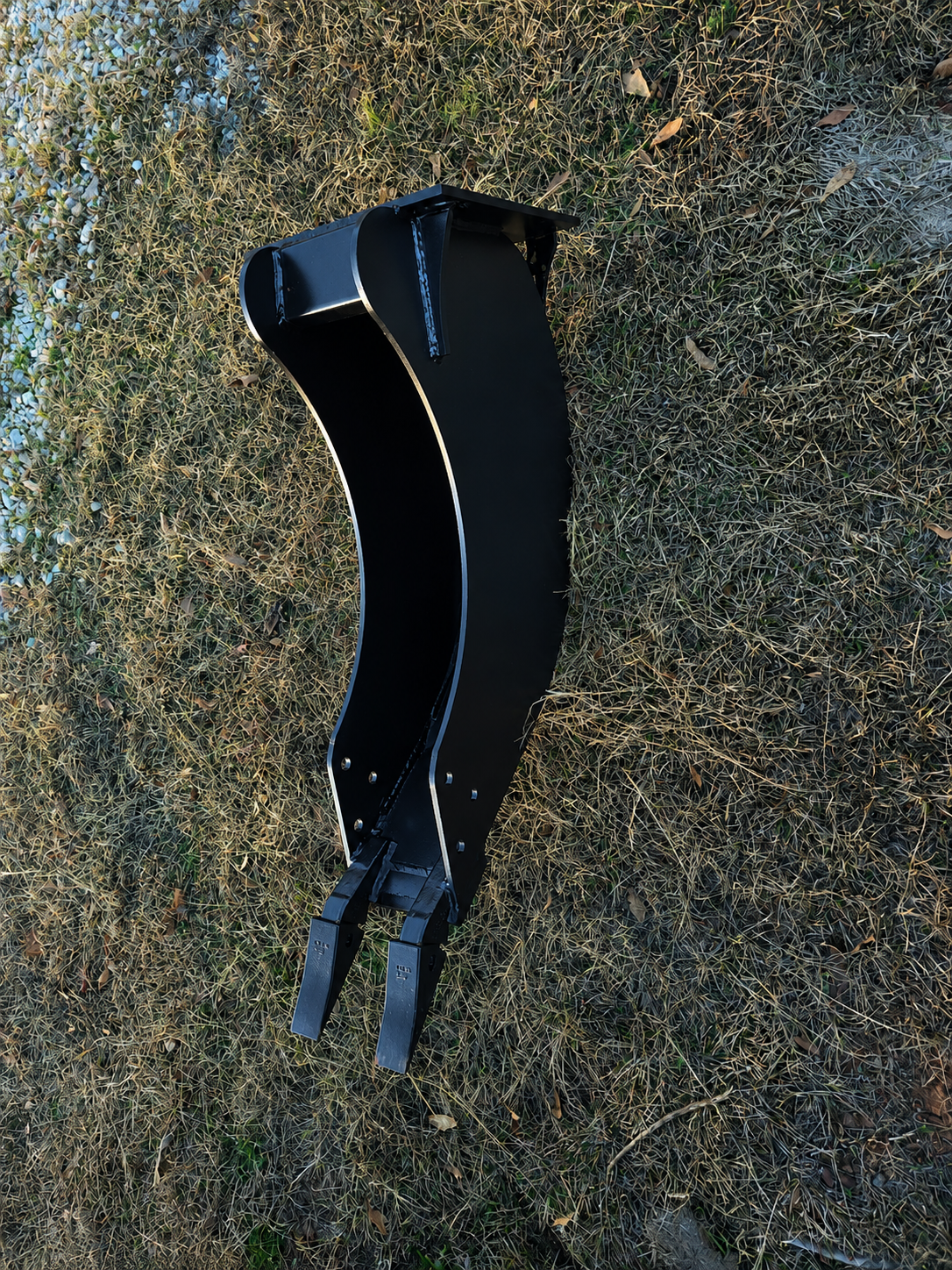

77 Steel 9" Trenching Bucket
Designed for digging narrow, clean trenches with maximum strength and minimal material removal, the 77 Steel 9" Trenching Bucket is built for contractors who demand durability and performance. Featuring 1/2" thick side plates, this bucket is engineered to withstand tough conditions while maintaining its shape under heavy use.
With a 9-inch cutting width and an overall depth of 36 inches from the top of the bucket to the cutting edge, it provides excellent reach for utility work, drainage, irrigation, and foundation trenches. Its narrow profile reduces excavation time by removing only the material you need, helping increase productivity and reduce backfill requirements.
Features:
9" digging width
Heavy-duty 1/2" thick side plates
36" overall bucket depth (top to cutting edge)
Reinforced construction for long service life
Ideal for utility, drainage, irrigation, and foundation trenching
Built in the USA by 77 Steel
